Digital Proximity System

Our revolutionary Digital Proximity System (DPS) eliminates the need for dozens of different drivers and transmitters by a single, field-configurable package that can be set to work with probes and cables from a variety of manufacturers.

• Fully API 670 compliant
• Programmable for either radial vibration, axial position, or speed measurements.
• Available as 3-wire voltage mode probe driver or as 4-20mA output transmitter
• Many special material calibrations available as standard options
• ETLc, ATEX, and IECEx, compatible with intrinsically safe and non-incendive apparatus
• Compatible with most probes and cables from major manufacturers, and all monitoring systems

The DPS consists of a probe, an extension cable, and a signal conditioner.

• MX2030 Probe Series
• MX2031 Cable Series

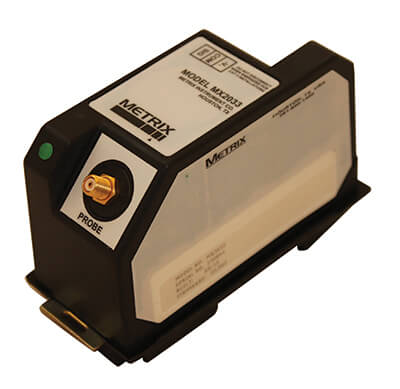

• MX2033 3-Wire Driver

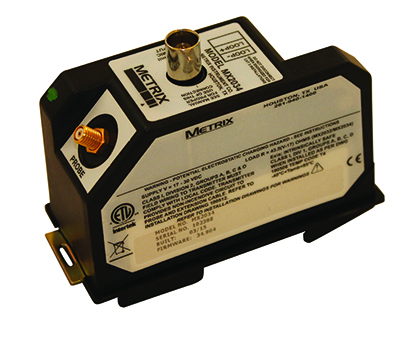

• MX2034 4-20 mA Transmitter

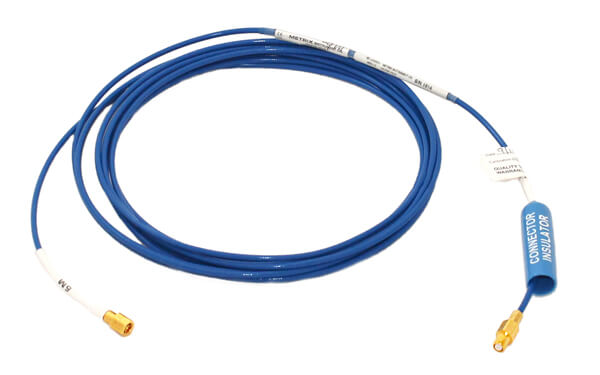

Cables

Metrix cables are interchangeable with Bently Nevada cables Series 3300, 7200, and 3000. Available with or without armor in lengths to match your system requirements.

• MX2031 Cable Series
• 3000 Series Cable
• 7200 Series Cable (5 & 8 mm)
• 7200 Series Cable (11mm)
• 7200 Series Cable (Sealed Feed Through)

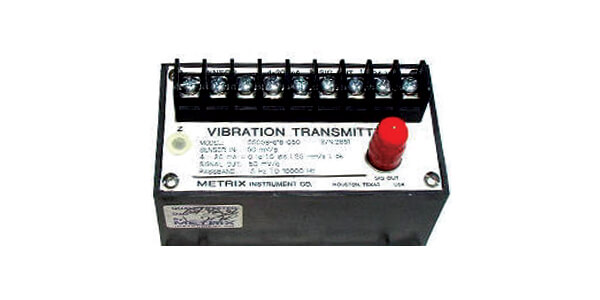

Vibration Transmitters

Metrix proximity vibration transmitters are compatible with Bently Nevada Series 3300, 7200, and 3000 probes and cables as well as our own probes and cables. The flexible Metrix MX2034 Transmitter can be reconfigured to handle any of these probe / cable combinations.

• MX2034 4-20 mA Transmitter
• TXR 5521 RPM Transmitter
• TXR Transmitter
• TXA Transmitter
