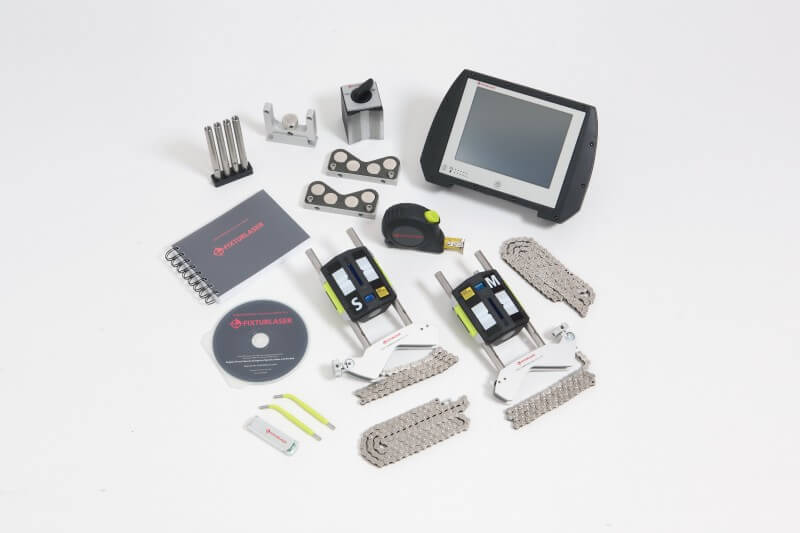

Fixturlaser NXA Pro

FEATURES

30 years of innovation continue with the introduction of the Fixturlaser NXA Pro.

  • Intuitive interface

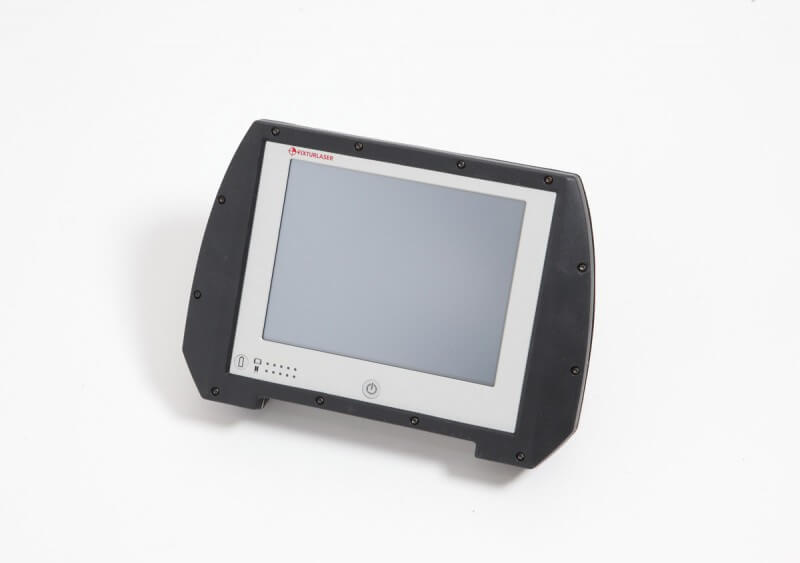

  • Large touch screen
  • Color coded results
  • Improved 3D animations with video game quality graphics
  • MEMS gyroscope built-in to both sensors and the display unit

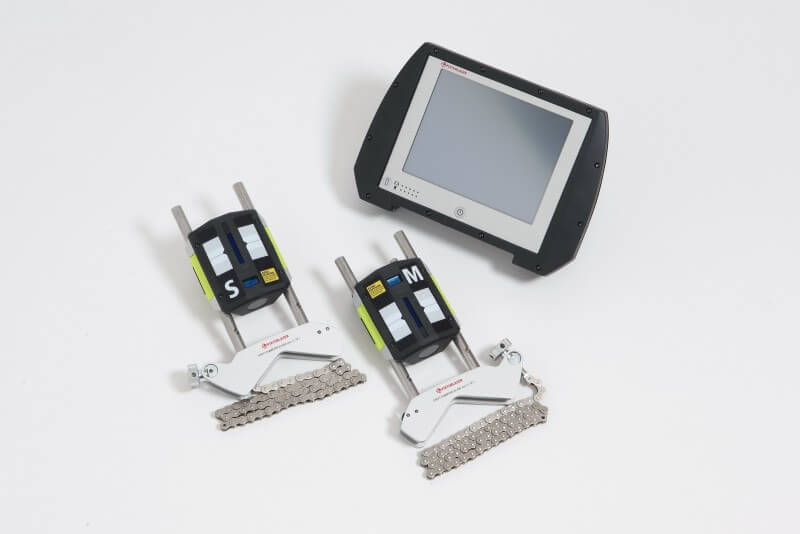

  • Large 30 millimeter 2nd generation scientific grade CCD sensors
  • Wireless Bluetooth® II built-in to small form factor sensors
  • Lifetime warranty

Applications

Shaft Alignment

Horizontal Machines
The Fixturlaser NXA Pro is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA Pro to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
Vertical Machines
The same power and ease of use found in the horizontal alignment program can be found in the vertical alignment program. The vertical alignment program is used when aligning flanged-mounted machines. The gyroscopes in the NXA Pro’s sensors allow the system to accurately measure the angles using the Tripoint Method of measurement, an industry first!
Machine Train
The NXA Pro’s machine train routine simplifies the complexity of aligning multiple units with connecting shafts. The software includes a “minimal moves” function which identifies the best reference machine to minimize the number of moves required to complete the alignment.
Spacer Shaft
With spacer shafts there are two power planes of transmission that need to be aligned to the correct tolerances. The NXA Pro spacer shaft program simplifies the process showing both ends of the spacer shaft coupling with an angle/angle display. The alignment is completed using the Verti-Zontal™ move.

Utilities

Soft Check™
The Fixturlaser NXA Pro is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA Pro to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
Feetlock™
This program allows the user to test alternate solutions in situations where the movable machine is base bound or bolt bound.
Hotcheck™
This program calculates the appropriate target values for an alignment based on the machine’s hot condition and ambient condition. The utility retrieves two saved shaft alignment measurements — one in the machine’s cold, or ambient condition and one in the hot condition — and then calculates the appropriate target values. Those values can be used the next time to ensure proper alignment at running conditions.
Target Values
Allows the system to compensate for pre-determined alignment targets. The user can establish targets using this function and then go directly to shaft alignment.
Memory Manager
Machine Defined Data
A set of machine configuration templates for storing data for individual machines.

Additional Resources

Specs (pdf)

Brochure (pdf)
